Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width311mm
Motor drive integratedNo
Depth280mm
Height250mm
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Width in number of modular spacings-
Number of switches1
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Rated permanent current Iu-A
Number of poles3
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Type of control elementLong turning handle
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V-kW
Version as maintenance-/service switchYes
Switching power at 400 V-kW
Degree of protection (NEMA)1
Version as reversing switchNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Rated short-time withstand current lcw20kA
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V800A
Colour control elementBlack
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V400A
Suitable for front mounting centreNo
Version as safety switchNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeYes
Device constructionBuilt-in device plug-in technique
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

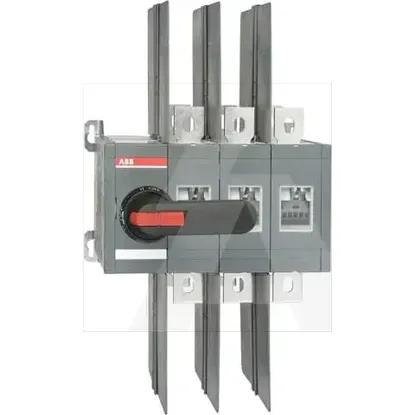

1SCA022785R5320 | OT600U03CP
