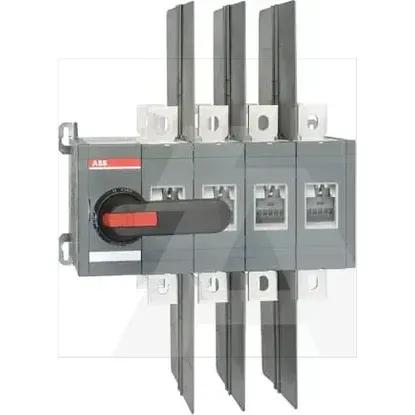

1SCA022785R5410 | OT600U04CP
Code: 2001261
ManufacturerABB
Catalog number1SCA022785R5410
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019255910
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth280mm
Number of auxiliary contacts as normally open contact0
Height250mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Width376mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Number of switches1
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Degree of protection (IP), front sideIP20
Type of control elementLong turning handle
Motor drive integratedNo
Version as emergency stop installationNo
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V800A
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationYes
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw20kA
Voltage release optionalNo
InterlockableYes
Rated operation power at AC-23, 400 V-kW
Version as safety switchNo
Colour control elementBlack
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V800A
Switching power at 400 V-kW
Degree of protection (NEMA)1
Version as main switchYes
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
