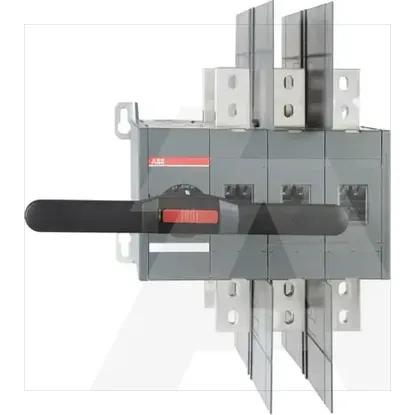

1SCA104031R1001 | OT800U03CP
Code: 2001264
ManufacturerABB
Catalog number1SCA104031R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019383743
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width400mm
Rated short-time withstand current lcw50kA
Conditioned rated short-circuit current Iq-kA
Height376mm
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Rated operating voltage1000 - 1000V
Version as maintenance-/service switchYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Depth335mm
InterlockableYes
Rated operation power at AC-23, 400 V-kW
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Number of switches1
Degree of protection (IP), front sideIP20
Version as safety switchNo
Version as main switchYes
Width in number of modular spacings-
Colour control elementBlack
Suitable for intermediate mountingNo
Voltage release optionalNo
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V1600A
Device constructionBuilt-in device plug-in technique
Suitable for front mounting centreNo
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V1600A
Suitable for distribution board installationYes
Version as reversing switchNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
