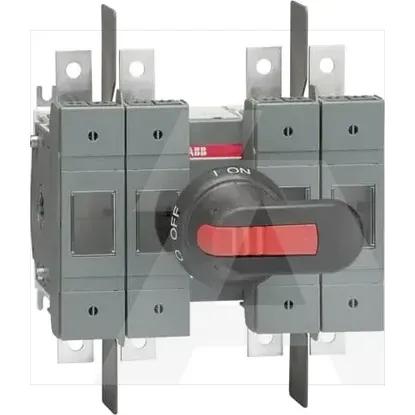

1SCA114636R1001 | OS100GJ22FP
Code: 2001266
ManufacturerABB
Catalog number1SCA114636R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019469973
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
With error protectionNo
Version as emergency stop installationNo
Suitable for busbar mountingYes
Type of electrical connection of main circuitBolt connection
Position control elementFront side
Suitable for floor mountingNo
Version as main switchYes
Motor drive optionalNo
Suitable for front mountingNo
Version as safety switchYes
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Rated short-time withstand current lcw5kA
Rated operation power at AC-23, 400 V132kW
Type of control elementLong turning handle
Equipped with connectorsYes
Rated permanent current Iu160A
Number of poles4
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
