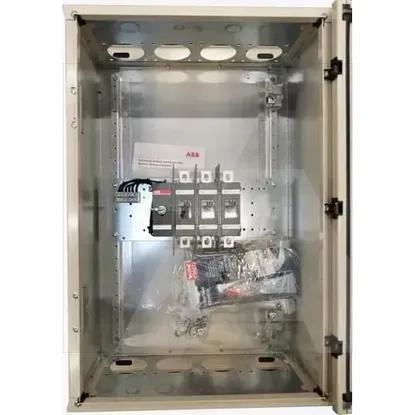

1SCA148595R1001 | OT160EVTRR3AZ
Code: 2001281
ManufacturerABB
Catalog number1SCA148595R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019781266
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Width400mm
Number of auxiliary contacts as normally open contact2
Height600mm
Depth230mm
Number of auxiliary contacts as normally closed contact1
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP65
Colour control elementRed
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Version as safety switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V88kW
Type of control elementLong turning handle
Suitable for floor mountingNo
Voltage release optionalNo
Number of switches1
Suitable for front mounting centreNo
Rated short-time withstand current lcw8kA
Suitable for front mounting 4-holeNo
InterlockableYes
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Version as maintenance-/service switchYes
Suitable for distribution board installationNo
Switching power at 400 V88kW
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V160A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC1000V
