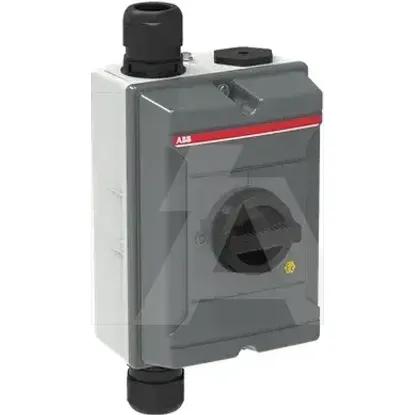

1SCA152714R1001 | OTA125S4BX-ATEX ENCLOSED SAFETY SWITCH
Code: 2001291
ManufacturerABB
Catalog number1SCA152714R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019839127
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage750 - 750V
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq16.5kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
InterlockableNo
Rated short-time withstand current lcw-kA
Version as safety switchYes
Version as main switchYes
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact2
Motor drive integratedNo
Type of control elementTurn button
Version as maintenance-/service switchYes
Number of switches1
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V45kW
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Colour control elementBlack
Number of auxiliary contacts as normally open contact2
Suitable for distribution board installationNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V125A
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Voltage release optionalNo
Switching power at 400 V45kW
Version as reversing switchNo
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V90A
Rated permanent current Iu125A
Number of poles4
Max. rated operation voltage Ue AC750V
