Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Degree of protection (IP), front sideIP65
Rated permanent current Iu32A
Rated operating voltage750 - 750V
Type of electrical connection of main circuitScrew connection
Number of poles3
Motor drive integratedNo
InterlockableNo
Conditioned rated short-circuit current Iq6.5kA
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Number of switches1
Version as safety switchYes
Version as main switchYes
Type of control elementTurn button
Rated short-time withstand current lcw-kA
Suitable for front mounting 4-holeYes
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V9kW
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Colour control elementRed
Rated permanent current at AC-21, 400 V25A
Switching power at 400 V9kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V20A
Version as reversing switchNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Motor drive optionalNo
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

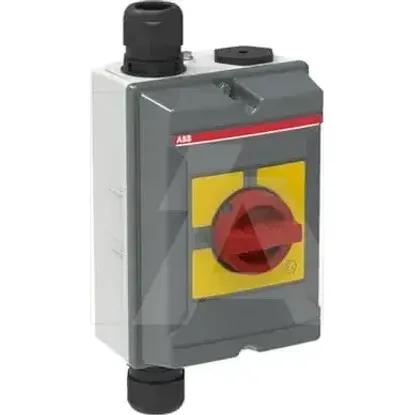

1SCA152723R1001 | OTA25S3YX-ATEX ENCLOSED SAFETY SWITCH
