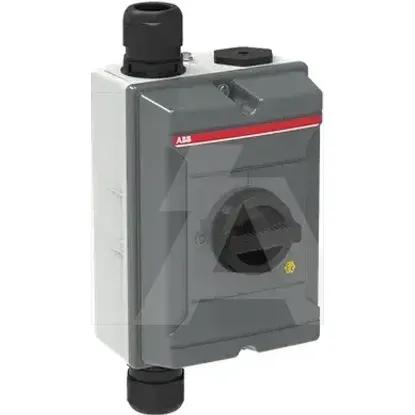

1SCA152736R1001 | OTA63S4BX-ATEX ENCLOSED SAFETY SWITCH
Code: 2001305
ManufacturerABB
Catalog number1SCA152736R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019839349
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP65
Rated operating voltage750 - 750V
Conditioned rated short-circuit current Iq13kA
Number of switches1
InterlockableNo
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
Version as main switchYes
Version as safety switchYes
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Colour control elementBlack
Rated short-time withstand current lcw-kA
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V22kW
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Switching power at 400 V22kW
Rated permanent current at AC-21, 400 V63A
Motor drive optionalNo
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Rated permanent current Iu63A
Number of poles4
Max. rated operation voltage Ue AC750V
