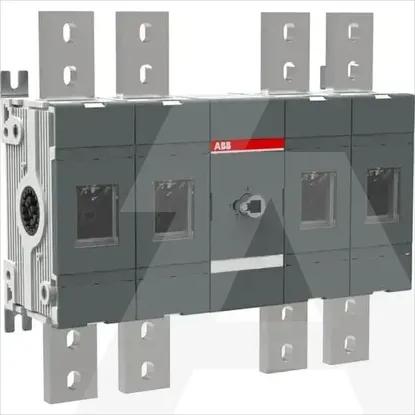

1SCA159247R1001 | OT1600E22-135
Code: 2001309
ManufacturerABB
Catalog number1SCA159247R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019886947
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width414.5mm
Suitable for floor mountingNo
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Depth148.5mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage- - -V
Conditioned rated short-circuit current Iq-kA
Type of control elementOther
Number of auxiliary contacts as normally open contact0
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
InterlockableYes
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw-kA
Version as emergency stop installationNo
Version as main switchYes
Width in number of modular spacings-
Number of switches1
Motor drive integratedNo
Version as maintenance-/service switchYes
Height372mm
Rated operation power at AC-23, 400 V-kW
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V-A
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Motor drive optionalNo
Suitable for front mounting centreNo
Switching power at 400 V-kW
With pre-assembled cablingNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC-V
