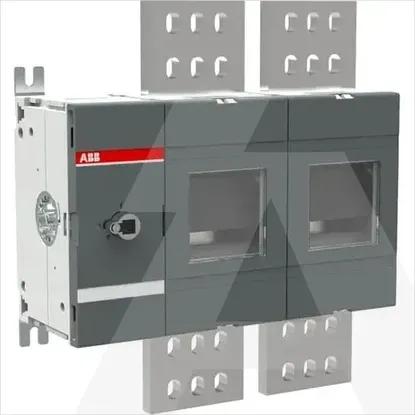

1SCA160392R1001 | OT2500E02-135
Code: 2001310
ManufacturerABB
Catalog number1SCA160392R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019901688
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width346.5mm
Number of auxiliary contacts as normally open contact0
InterlockableYes
Conditioned rated short-circuit current Iq-kA
Height376.5mm
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Depth145.5mm
Rated operating voltage- - -V
Version as main switchYes
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchYes
Rated short-time withstand current lcw-kA
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Number of switches1
Rated operation power at AC-23, 400 V-kW
Degree of protection (IP), front sideIP00
Type of control elementOther
Motor drive integratedNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC-V
