Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Depth135mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Height211mm
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated permanent current Iu-A
Number of auxiliary contacts as change-over contact0
InterlockableNo
Motor drive integratedNo
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Type of control elementOther
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP20
Version as safety switchNo
Number of switches1
Width255.5mm
Version as main switchYes
Suitable for front mounting 4-holeYes
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Rated operation power at AC-23, 400 V-kW
Motor drive optionalNo
Rated permanent current at AC-23, 400 V-A
Suitable for front mounting centreNo
Switching power at 400 V-kW
With pre-assembled cablingNo
Degree of protection (NEMA)1
Max. rated operation voltage Ue AC-V
Suitable for intermediate mountingNo
Version as reversing switchNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

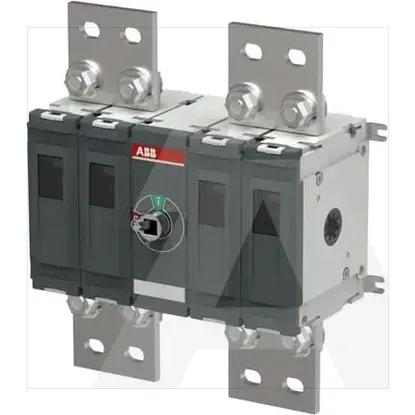

1SCA161286R1001 | OTDC1000F22
