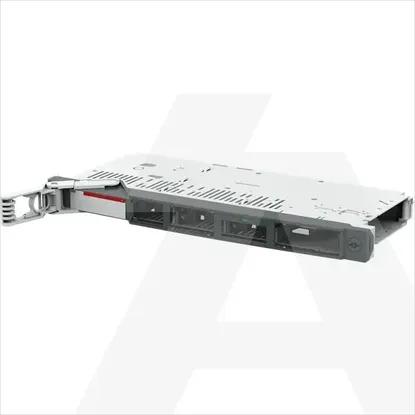

1SEP204480R3500 | XRG00-185/10-3P
Code: 2001373
ManufacturerABB
Catalog number1SEP204480R3500
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code3800161650000
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Cable entrySide
With error protectionNo
Degree of protection (IP), front sideIP41
Conditioned rated short-circuit current Iq120kA
Version as emergency stop installationNo
Rated short-time withstand current lcw-kA
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as safety switchNo
Suitable for front mountingNo
Rated operation power at AC-23, 400 V-kW
Suitable for busbar mountingYes
Suitable for floor mountingNo
Type of control elementOther
Motor drive optionalNo
Equipped with connectorsNo
Position control elementFront side
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH00
Max. rated operation voltage Ue AC690V
