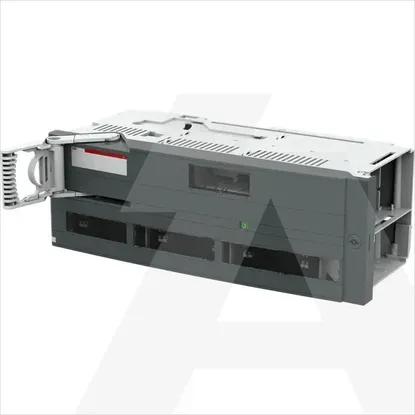

1SEP204483R3500 | XRG3-185/10-3P
Code: 2001379
ManufacturerABB
Catalog number1SEP204483R3500
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code3800161651601
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP), front sideIP41
Cable entrySide
Conditioned rated short-circuit current Iq120kA
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementOther
Motor drive optionalNo
With error protectionNo
Rated short-time withstand current lcw-kA
Equipped with connectorsNo
Rated operation power at AC-23, 400 V-kW
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar mountingYes
Position control elementFront side
Rated permanent current Iu630A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC690V
