Details
- •Low-voltage industrial components
- •DC-power supply
- •1 KOM
- •ABB
Technical specifications
Depth127mm
Height129.4mm
Built-in height129.4mm
Power consumption258VA
Modular versionNo
Width40mm
Suitable for safety functionsNo
Voltage type of supply voltageAC/DC
Output voltage stabilizedYes
Width in number of modular spacings-
Power output240W
Built-in width40mm
Degree of protection (IP)IP20
StabilizedYes
Wall mounting possibleNo
2nd secondary output voltage0 - 0V
1st secondary output voltage24 - 24V
Type of electric connectionScrew connection
Rated supply voltage at DC90 - 277V
Rail mounting possibleYes
Secondary voltage adjustableNo
Rated supply voltage at AC 60 Hz85 - 264V
Max. output current 20A
Max. output current 115A
Short-circuit-proofYes
Rated supply voltage at AC 50 Hz85 - 264V
Max. output current 30A
3rd secondary output voltage0 - 0V
Performance level according to EN ISO 13849-1None
Nominal value output voltage 124V
Direct mounting possibleNo
Nominal value output voltage 30V
Nominal value output current 20A
Nominal value output voltage 20V
SIL according to IEC 61508None
Nominal value output current 110A
Nominal value output current 30A
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

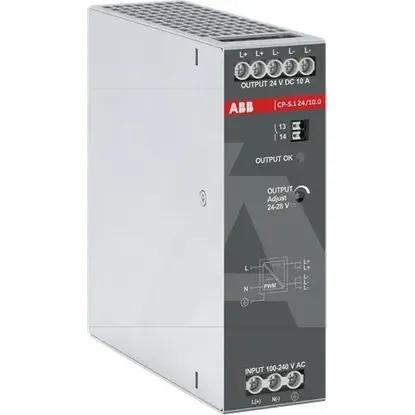

1SVR320661R1000 | CP-S.1 24/10.0 POWER SUPPLY
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- DC-power supply
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Depth
127mm
Height
129.4mm
Built-in height
129.4mm
Power consumption
258VA
Modular version
Width
40mm
Suitable for safety functions
Voltage type of supply voltage
AC/DC
Output voltage stabilized
Width in number of modular spacings
-
Power output
240W
Built-in width
40mm
Degree of protection (IP)
IP20
Stabilized
Wall mounting possible
2nd secondary output voltage
0 .. 0V
1st secondary output voltage
24 .. 24V
Type of electric connection
Screw connection
Rated supply voltage at DC
90 .. 277V
Rail mounting possible
Secondary voltage adjustable
Rated supply voltage at AC 60 Hz
85 .. 264V
Max. output current 2
0A
Max. output current 1
15A
Short-circuit-proof
Rated supply voltage at AC 50 Hz
85 .. 264V
Max. output current 3
0A
3rd secondary output voltage
0 .. 0V
Performance level according to EN ISO 13849-1
None
Nominal value output voltage 1
24V
Direct mounting possible
Nominal value output voltage 3
0V
Nominal value output current 2
0A
Nominal value output voltage 2
0V
SIL according to IEC 61508
None
Nominal value output current 1
10A
Nominal value output current 3
0A
Degree of protection (NEMA)
1
