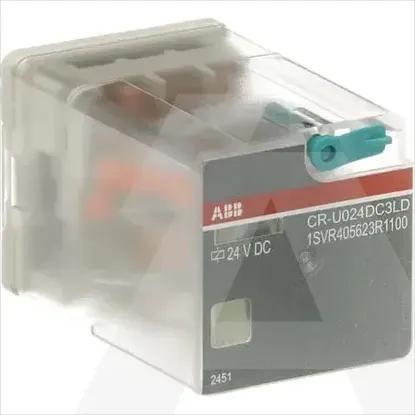

1SVR405623R1100 | CR-U024DC3LD PLUGGABLE INTERFACE RELAY
Code: 2001572
ManufacturerABB
Catalog number1SVR405623R1100
TypeSwitching relay
CategorySwitching relay
EAN code4013614498770
Details
- •Relays
- •Switching relay
- •1 KOM
- •ABB
Technical specifications
Rated control supply voltage Us at DC24 - 24V
With forced-guided contactsNo
Width35mm
Max. starting current-A
Complete with socketNo
Type of switch contactSingle contact
Drive, polarizationPolarized
Type of electric connectionOther
Drive, switching attitudeMono stable
Height54.4mm
Depth35mm
With detachable clampsNo
Rated control supply voltage Us at AC 60HZ- - -V
Operating voltage at DC- - -V
With LED indicationYes
Degree of protection (IP)IP40
Operating voltage at AC 50 Hz250 - 250V
Voltage type (operating voltage)AC/DC
Material contactSilver nickel (AgNi)
Operating voltage at AC 60 Hz250 - 250V
Material of contact surfaceOther
Number of contacts as normally closed contact0
Relay technology category according to IEC 61810-7RT I
Number of contacts as normally open contact0
Nominal current10A
Rated control supply voltage Us at AC 50HZ- - -V
Voltage type for actuatingDC
Number of contacts as change-over contact3
