Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Time range- - -s
Width17.5mm
Height70mm
Depth63mm
Type of electric connectionScrew connection
Function flashing, starting with pause, fixed timeNo
Function star-deltaNo
Function pulse shapingNo
Clock function, starting with pause, variableNo
Function delay on de-energizationNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Remote operation possibleNo
Rated control supply voltage Us at DC24 - 48V
Number of outputs, delayed, normally open contact2
Outputs, reversible delayed/undelayedNo
With semiconductor outputNo
Number of outputs, undelayed, change-over contact0
Number of outputs, undelayed, normally closed contact0
Number of outputs, delayed, change-over contact0
Suitable for DIN rail (top hat rail) mountingYes
Rated control supply voltage Us at AC 60HZ24 - 240V
Pluggable on auxiliary contact blockNo
Suitable as remote controlNo
Suitable for front mountingNo
Function floating contact on de-energizationNo
Voltage type for actuatingAC/DC
Number of outputs, undelayed, normally open contact2
Function floating contact on energizationNo
Number of outputs, delayed, normally closed contact0
Clock function, starting with pulse, variableNo
With plug-in socketNo
Function delay-on energizationNo
Function flashing, starting with pulse, fixed timeNo
Nominal current4A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

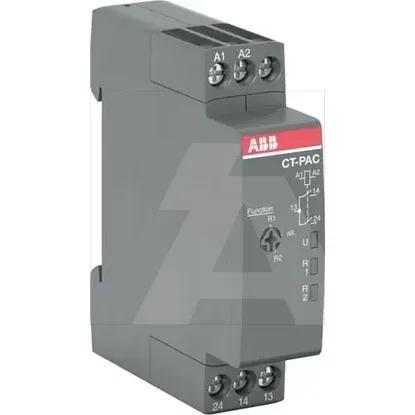

1SVR508180R0100 | CT-PAC.22 TIME RELAY, ALTERNATING
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Time range
- .. -s
Width
17.5mm
Height
70mm
Depth
63mm
Type of electric connection
Screw connection
Function flashing, starting with pause, fixed time
Function star-delta
Function pulse shaping
Clock function, starting with pause, variable
Function delay on de-energization
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Remote operation possible
Rated control supply voltage Us at DC
24 .. 48V
Number of outputs, delayed, normally open contact
2
Outputs, reversible delayed/undelayed
With semiconductor output
Number of outputs, undelayed, change-over contact
0
Number of outputs, undelayed, normally closed contact
0
Number of outputs, delayed, change-over contact
0
Suitable for DIN rail (top hat rail) mounting
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Pluggable on auxiliary contact block
Suitable as remote control
Suitable for front mounting
Function floating contact on de-energization
Voltage type for actuating
AC/DC
Number of outputs, undelayed, normally open contact
2
Function floating contact on energization
Number of outputs, delayed, normally closed contact
0
Clock function, starting with pulse, variable
With plug-in socket
Function delay-on energization
Function flashing, starting with pulse, fixed time
Nominal current
4A
