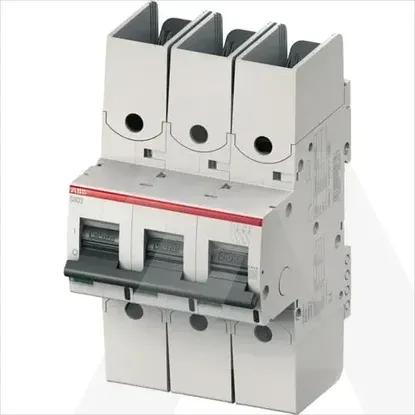

2CCF019045R0001 | S803HV-K100
Code: 2001634
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current100A
Rated insulation voltage Ui1000V
Release characteristicK
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Voltage typeOther
Frequency50 - 60Hz
Rated voltage-V
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of poles (total)3
Number of protected poles3
Built-in depth82.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Power loss24W
Concurrently switching neutral conductorNo
Over voltage category3
Pollution degree2
Width in number of modular spacings4.5
Flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 50mm²
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Degree of protection (IP)IP20
Explosion-proofNo
Connectable conductor cross section solid-core0 - 70mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CCF019045R0001 | S803HV-K100
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated current
100A
Rated insulation voltage Ui
1000V
Release characteristic
K
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Voltage type
Other
Frequency
50 .. 60Hz
Rated voltage
-V
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Number of poles (total)
3
Number of protected poles
3
Built-in depth
82.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Power loss
24W
Concurrently switching neutral conductor
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4.5
Flush-mounted installation
Connectable conductor cross section multi-wired
0 .. 50mm²
Ambient temperature during operating
-25 .. 60°C
Additional equipment possible
Degree of protection (IP)
IP20
Explosion-proof
Connectable conductor cross section solid-core
0 .. 70mm²
