Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth75mm
Current limiting class3
Release characteristicC
Rated insulation voltage Ui440V
Rated current16A
Rated voltage415V
Width in number of modular spacings3
Frequency50 - 60Hz
Pollution degree2
Power loss5.457W
Over voltage category3
Explosion-proofNo
Number of protected poles3
Connectable conductor cross section solid-core0.75 - 35mm²
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-25 - 60°C
Number of poles (total)3
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

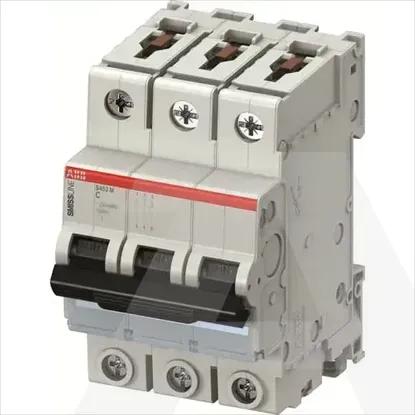

2CCS473001R0164 | S453M-C16 3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Built-in depth
75mm
Current limiting class
3
Release characteristic
C
Rated insulation voltage Ui
440V
Rated current
16A
Rated voltage
415V
Width in number of modular spacings
3
Frequency
50 .. 60Hz
Pollution degree
2
Power loss
5.457W
Over voltage category
3
Explosion-proof
Number of protected poles
3
Connectable conductor cross section solid-core
0.75 .. 35mm²
Additional equipment possible
Concurrently switching neutral conductor
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Ambient temperature during operating
-25 .. 60°C
Number of poles (total)
3
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
