Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Concurrently switching neutral conductorNo
Rated current20A
Rated insulation voltage Ui440V
Pollution degree2
Rated voltage400V
Release characteristicD
Number of protected poles3
Explosion-proofNo
Current limiting class3
Width in number of modular spacings3
Over voltage category3
Built-in depth75mm
Degree of protection (IP)IP20
Frequency50 - 60Hz
Power loss5.808W
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-25 - 60°C
Flush-mounted installationNo
Voltage typeOther
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

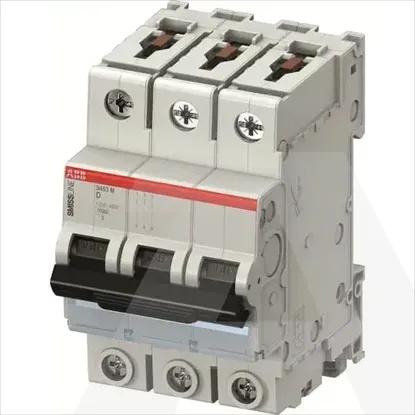

2CCS473001R0481 | S453M-D20
