Details

  • •Circuit breakers and fuses

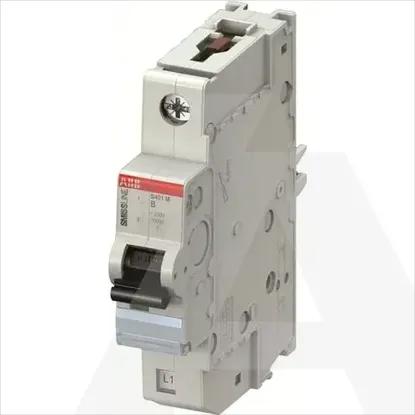

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Frequency50 - 60Hz
Rated insulation voltage Ui440V
Current limiting class3
Width in number of modular spacings1
Voltage typeOther
Pollution degree3
Rated voltage230V
Built-in depth75mm
Over voltage category3
Explosion-proofNo
Degree of protection (IP)IP20
Power loss2.2W
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Number of protected poles1
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated current16A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
