Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage230V
Voltage typeOther
Rated current32A
Built-in depth75mm
Frequency50 - 60Hz
Over voltage category3
Pollution degree2
Current limiting class3
Explosion-proofNo
Power loss3.8W
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Release characteristicOther
Width in number of modular spacings1
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Number of protected poles1
Ambient temperature during operating-25 - 60°C
Flush-mounted installationNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

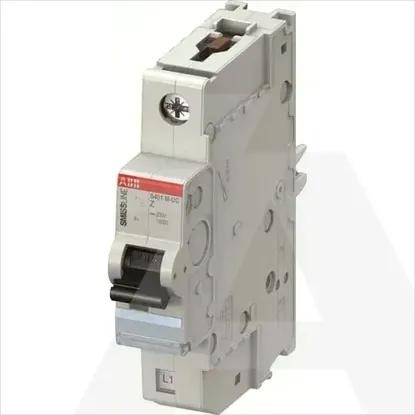

2CCS571001R1328 | S401M-UCZ32
