Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth75mm
Rated current50A
Rated voltage230V
Flush-mounted installationNo
Over voltage category3
Power loss4.2W
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree2
Explosion-proofNo
Rated insulation voltage Ui440V
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Degree of protection (IP)IP20
Width in number of modular spacings1
Release characteristicOther
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-25 - 60°C
Current limiting class3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

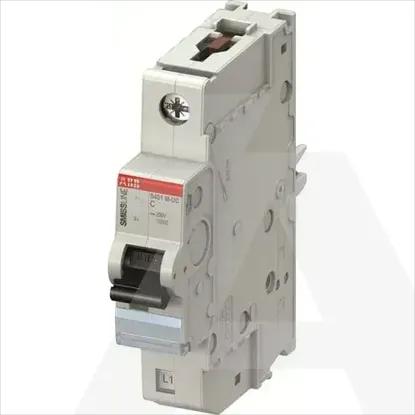

2CCS571001R1504 | S401M-UCC50
