Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage415V
Rated current40A
Built-in depth75mm
Current limiting class3
Pollution degree3
Over voltage category3
Explosion-proofNo
Power loss7.4W
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Voltage typeOther
Release characteristicC
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles2
Ambient temperature during operating-25 - 60°C
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings2
Additional equipment possibleYes
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

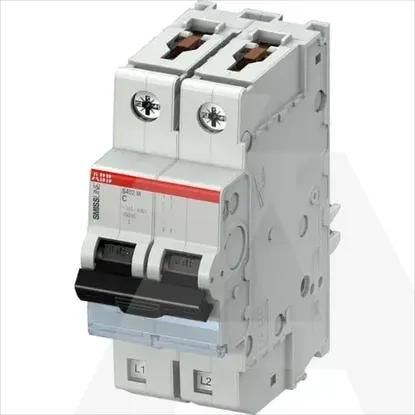

2CCS572001R0404 | S402M-C40
