Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category3
Pollution degree3
Voltage typeOther
Rated voltage240V
Frequency50 - 60Hz
Rated current10A
Rated insulation voltage Ui440V
Current limiting class3
Built-in depth75mm
Release characteristicK
Width in number of modular spacings2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Number of protected poles2
Explosion-proofNo
Concurrently switching neutral conductorNo
Number of poles (total)2
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Power loss3.2W
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

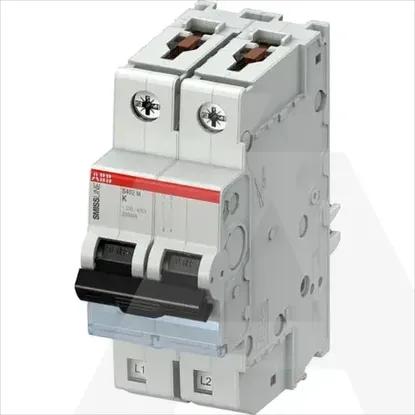

2CCS572001R0427 | S402M-K10
