Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles2
Frequency50 - 60Hz
Built-in depth75mm
Pollution degree2
Rated insulation voltage Ui440V
Width in number of modular spacings2
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Rated voltage400V
Current limiting class3
Release characteristicOther
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Explosion-proofNo
Rated current40A
Power loss8.4W
Voltage typeOther
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)2
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

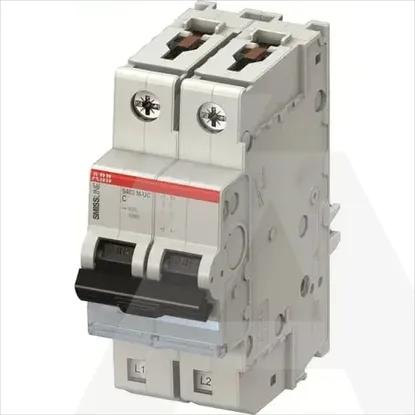

2CCS572001R1404 | S402M-UCC40
