Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage400V
Rated current63A
Built-in depth75mm
Voltage typeOther
Frequency50 - 60Hz
Pollution degree3
Power loss16.8W
Degree of protection (IP)IP20
Width in number of modular spacings3
Over voltage category3
Release characteristicD
Current limiting class3
Explosion-proofNo
Rated insulation voltage Ui440V
Ambient temperature during operating-25 - 60°C
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of poles (total)3
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of protected poles3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

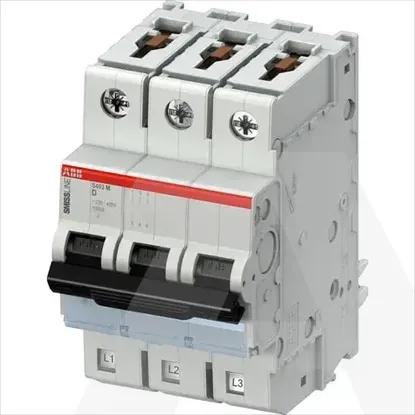

2CCS573001R0631 | S403M-D63
