Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated current1.6A
Ambient temperature during operating-25 - 60°C
Voltage typeOther
Number of protected poles3
Current limiting class3
Degree of protection (IP)IP20
Width in number of modular spacings3
Connectable conductor cross section solid-core0.75 - 35mm²
Built-in depth75mm
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Rated voltage415V
Explosion-proofNo
Power loss5.1W
Concurrently switching neutral conductorNo
Rated insulation voltage Ui440V
Release characteristicC
Frequency50 - 60Hz
Over voltage category3
Additional equipment possibleYes
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CCS573001R0974 | S403M-C1.6

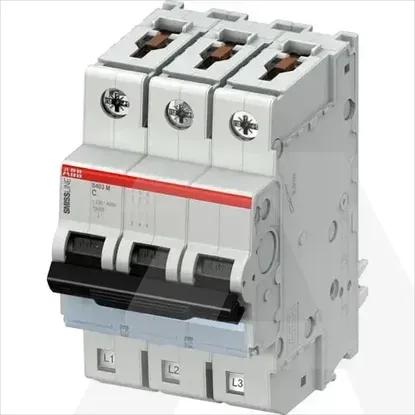

Main Product Image
