Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage415V
Frequency50 - 60Hz
Release characteristicC
Rated current40A
Voltage typeOther
Built-in depth75mm
Width in number of modular spacings4
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Current limiting class3
Power loss14.8W
Connectable conductor cross section solid-core0.75 - 35mm²
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
Concurrently switching neutral conductorYes
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Over voltage category3
Number of poles (total)4
Explosion-proofNo
Number of protected poles4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

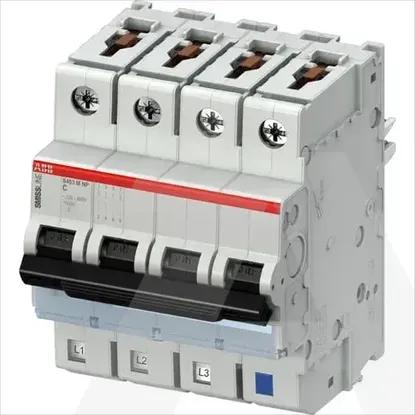

2CCS573103R8404 | S403M-C40NP
