Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82.5mm
Voltage typeOther
Rated current80A
Release characteristicOther
Rated voltage-V
Rated insulation voltage Ui1500V
Frequency0 - 0Hz
Current limiting class3
Pollution degree2
Over voltage category3
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 50mm²
Explosion-proofNo
Connectable conductor cross section solid-core0 - 70mm²
Width in number of modular spacings3
Power loss12.8W
Degree of protection (IP)IP20
Additional equipment possibleYes
Flush-mounted installationNo
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

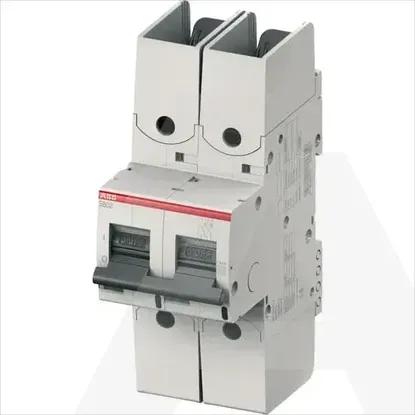

2CCS862002R1805 | S802S-UCB80-R
