Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated current60A
Built-in depth82.5mm
Power loss5.8W
Width in number of modular spacings3
Frequency50 - 60Hz
Pollution degree2
Rated insulation voltage Ui690V
Over voltage category3
Rated voltage-V
Degree of protection (IP)IP20
Explosion-proofNo
Release characteristicK
Current limiting class3
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 70mm²
Connectable conductor cross section multi-wired0 - 50mm²
Flush-mounted installationNo
Number of protected poles2
Additional equipment possibleYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

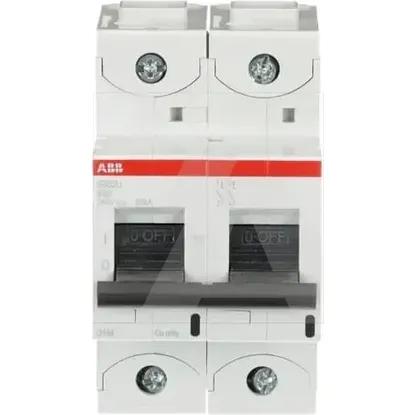

2CCS862017R0587 | S802U-K60
