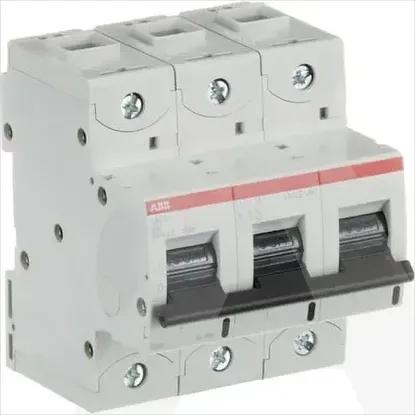

2CCS863017R0557 | S803U-K40
Code: 2002286
ManufacturerABB
Catalog number2CCS863017R0557
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code7612271214227
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Explosion-proofNo
Degree of protection (IP)IP20
Current limiting class3
Rated insulation voltage Ui690V
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 50mm²
Rated voltage-V
Pollution degree2
Power loss3.7W
Over voltage category3
Voltage typeOther
Frequency50 - 60Hz
Connectable conductor cross section solid-core0 - 70mm²
Built-in depth82.5mm
Width in number of modular spacings4.5
Number of protected poles3
Flush-mounted installationNo
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated current40A
Release characteristicK
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
