Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage-V
Rated insulation voltage Ui690V
Release characteristicK
Voltage typeOther
Number of poles (total)3
Rated impulse withstand voltage Uimp8kV
Built-in depth82.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Power loss4.3W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Frequency50 - 60Hz
Number of protected poles3
Rated current50A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Width in number of modular spacings4.5
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Over voltage category3
Explosion-proofNo
Additional equipment possibleYes
Pollution degree2
Connectable conductor cross section solid-core0 - 70mm²
Connectable conductor cross section multi-wired0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

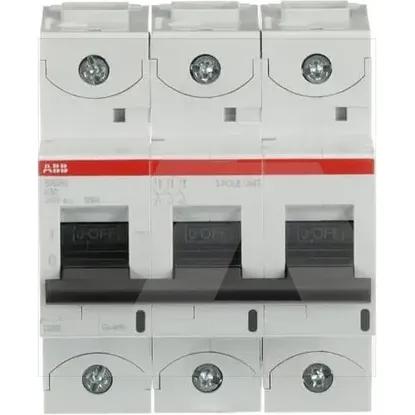

2CCS863017R0577 | S803U-K50
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated voltage
-V
Rated insulation voltage Ui
690V
Release characteristic
K
Voltage type
Other
Number of poles (total)
3
Rated impulse withstand voltage Uimp
8kV
Built-in depth
82.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Power loss
4.3W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50kA
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Frequency
50 .. 60Hz
Number of protected poles
3
Rated current
50A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Concurrently switching neutral conductor
Flush-mounted installation
Width in number of modular spacings
4.5
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 .. 60°C
Over voltage category
3
Explosion-proof
Additional equipment possible
Pollution degree
2
Connectable conductor cross section solid-core
0 .. 70mm²
Connectable conductor cross section multi-wired
0 .. 50mm²
