Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp8kV
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of poles (total)4
Number of protected poles4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50kA
Rated voltage-V
Frequency50 - 60Hz
Built-in depth82.5mm
Rated insulation voltage Ui690V
Rated current70A
Release characteristicK
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Power loss4.9W
Flush-mounted installationNo
Additional equipment possibleYes
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 50mm²
Concurrently switching neutral conductorNo
Over voltage category3
Pollution degree2
Connectable conductor cross section solid-core0 - 70mm²
Explosion-proofNo
Width in number of modular spacings6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

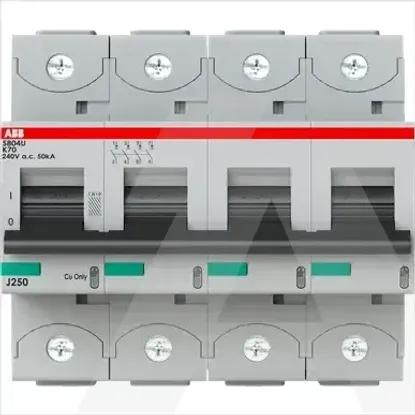

2CCS864017R0707 | S804U-K70
