Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated current1A
Built-in depth69mm
Rated voltage400V
Power loss-W
Pollution degree3
Explosion-proofNo
Release characteristicB
Rated insulation voltage Ui440V
Current limiting class3
Number of protected poles2
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings2.0
Degree of protection (IP)IP20
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Frequency50 - 60Hz
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Ambient temperature during operating-25 - 55°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

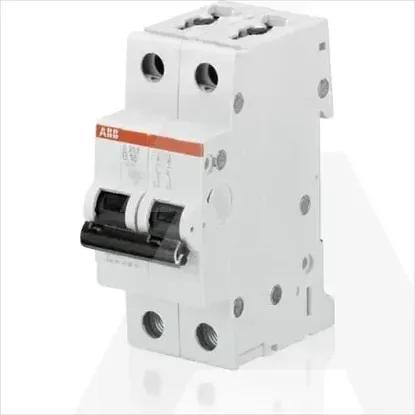

2CDS252001R0015 | S202-B1
