Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)2
Built-in depth69mm
Release characteristicB
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Number of protected poles2
Rated current4A
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Voltage typeOther
Power loss-W
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Over voltage category3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Flush-mounted installationNo
Pollution degree3
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings2.0
Explosion-proofNo
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

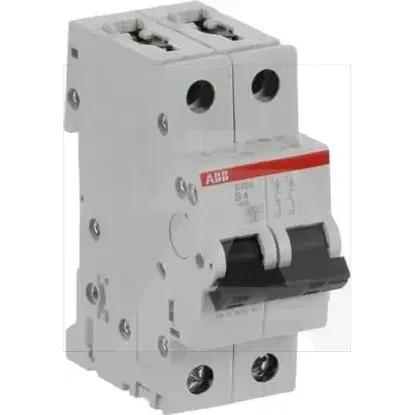

2CDS252001R0045 | S202-B4
