Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Rated voltage220V
Built-in depth69mm
Rated current2A
Voltage typeOther
Explosion-proofNo
Rated insulation voltage Ui440V
Release characteristicC
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Number of protected poles1
Concurrently switching neutral conductorNo
Power loss1.45W
Width in number of modular spacings1.0
Pollution degree3
Current limiting class3
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Flush-mounted installationNo
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

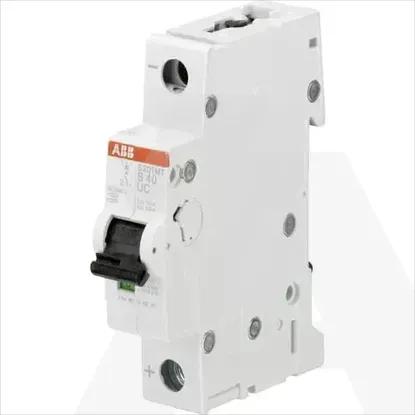

2CDS271065R0024 | S201MT-C2UC
