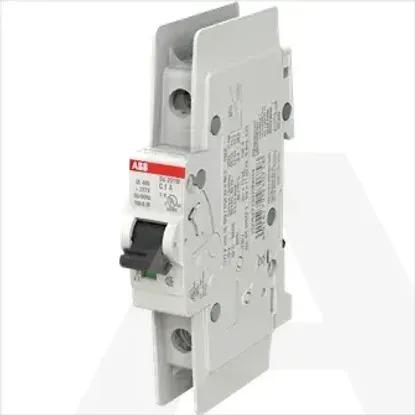

2CDS271337R0014 | SU201M-C1
Code: 2002337
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Number of poles (total)1
Release characteristicC
Number of protected poles1
Rated voltage277V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Voltage typeAC/DC
Rated current1A
Connectable conductor cross section solid-core0 - 35mm²
Additional equipment possibleYes
Current limiting class3
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 55°C
Over voltage category3
Built-in depth69mm
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 25mm²
Pollution degree3
Width in number of modular spacings1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271337R0014 | SU201M-C1
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Number of poles (total)
1
Release characteristic
C
Number of protected poles
1
Rated voltage
277V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Concurrently switching neutral conductor
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
11.2kA
Voltage type
AC/DC
Rated current
1A
Connectable conductor cross section solid-core
0 .. 35mm²
Additional equipment possible
Current limiting class
3
Suitable for flush-mounted installation
Ambient temperature during operating
-25 .. 55°C
Over voltage category
3
Built-in depth
69mm
Rated insulation voltage Ui
440V
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0 .. 25mm²
Pollution degree
3
Width in number of modular spacings
1
