Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Release characteristicC
Number of poles (total)1
Rated voltage277V
Number of protected poles1
Rated insulation voltage Ui440V
Rated current5A
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Frequency50 - 60Hz
Current limiting class3
Pollution degree3
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Width in number of modular spacings1
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
Over voltage category3
Built-in depth69mm
Ambient temperature during operating-25 - 55°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS271337R0054 | SU201M-C5

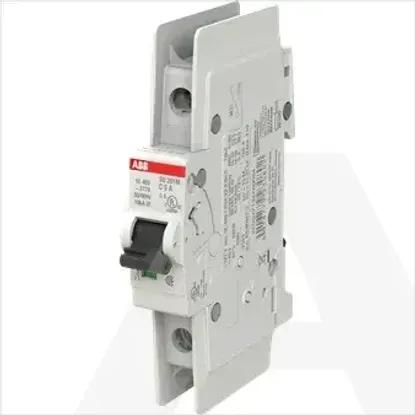

Main Product Image
