Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Release characteristicC
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Voltage typeOther
Rated current7A
Rated voltage277V
Built-in depth69mm
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Ambient temperature during operating-25 - 55°C
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Explosion-proofNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Power loss1.5W
Number of poles (total)1
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Over voltage category3
Width in number of modular spacings1.0
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

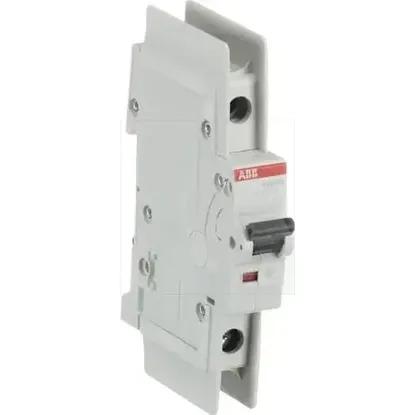

2CDS271337R0074 | SU201M-C7
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Current limiting class
3
Release characteristic
C
Frequency
50 .. 60Hz
Rated insulation voltage Ui
440V
Voltage type
Other
Rated current
7A
Rated voltage
277V
Built-in depth
69mm
Number of protected poles
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Ambient temperature during operating
-25 .. 55°C
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
0.75 .. 35mm²
Degree of protection (IP)
IP20
Explosion-proof
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2kA
Power loss
1.5W
Number of poles (total)
1
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Additional equipment possible
Over voltage category
3
Width in number of modular spacings
1.0
Pollution degree
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Rated impulse withstand voltage Uimp
4kV
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
