Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Release characteristicC
Number of poles (total)1
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of protected poles1
Rated voltage277V
Rated current13A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Current limiting class3
Width in number of modular spacings1
Built-in depth69mm
Pollution degree3
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
Over voltage category3
Voltage typeAC/DC
Ambient temperature during operating-25 - 55°C
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS271337R0134 | SU201M-C13

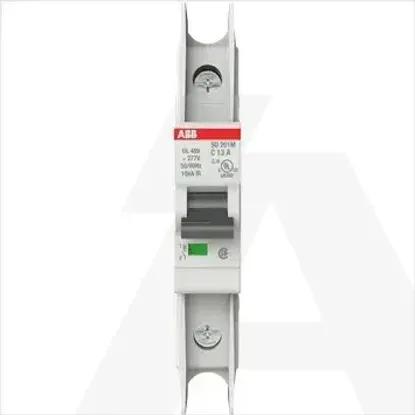

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Release characteristic

C

Number of poles (total)

1

Rated insulation voltage Ui

440V

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Number of protected poles

1

Rated voltage

277V

Rated current

13A

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

11.2kA

Suitable for flush-mounted installation

Additional equipment possible

Current limiting class

3

Width in number of modular spacings

1

Built-in depth

69mm

Pollution degree

3

Connectable conductor cross section multi-wired

0 .. 25mm²

Connectable conductor cross section solid-core

0 .. 35mm²

Over voltage category

3

Voltage type

AC/DC

Ambient temperature during operating

-25 .. 55°C

Concurrently switching neutral conductor

Frequency

50 .. 60Hz

Degree of protection (IP)

IP20
