Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Built-in depth69mm
Rated current1A
Rated voltage277V
Frequency50 - 60Hz
Release characteristicK
Current limiting class3
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Width in number of modular spacings1
Concurrently switching neutral conductorNo
Pollution degree3
Over voltage category3
Number of protected poles1
Connectable conductor cross section solid-core0 - 35mm²
Additional equipment possibleYes
Number of poles (total)1
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

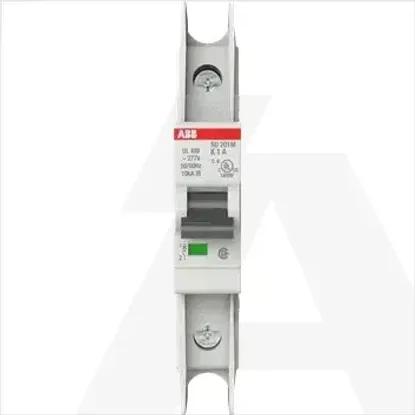

2CDS271337R0217 | SU201M-K1
