Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated voltage277V
Frequency50 - 60Hz
Built-in depth69mm
Rated current25A
Voltage typeAC/DC
Rated insulation voltage Ui440V
Pollution degree3
Degree of protection (IP)IP20
Current limiting class3
Over voltage category3
Width in number of modular spacings1
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Number of poles (total)1
Number of protected poles1
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

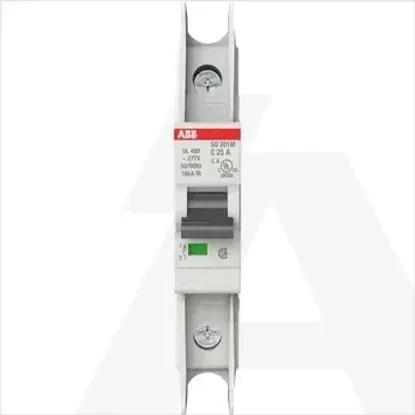

2CDS271337R0254 | SU201M-C25
