Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current3A
Built-in depth69mm
Voltage typeAC/DC
Rated insulation voltage Ui440V
Release characteristicK
Frequency50 - 60Hz
Rated voltage277V
Over voltage category3
Current limiting class3
Number of protected poles1
Width in number of modular spacings1
Concurrently switching neutral conductorNo
Pollution degree3
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

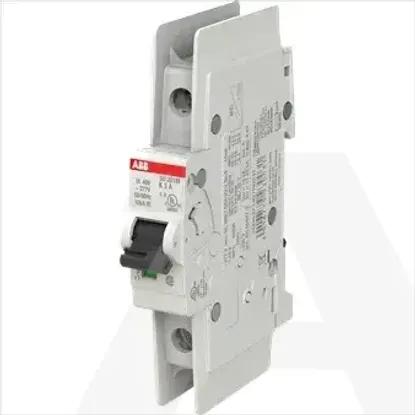

2CDS271337R0317 | SU201M-K3
