Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Over voltage category3
Rated current7A
Rated insulation voltage Ui440V
Built-in depth69mm
Power loss1.5W
Frequency50 - 60Hz
Voltage typeOther
Rated voltage277V
Explosion-proofNo
Release characteristicK
Current limiting class3
Width in number of modular spacings1.0
Pollution degree3
Number of protected poles1
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Number of poles (total)1
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V11.2kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

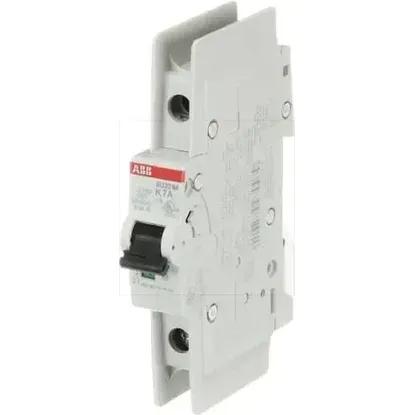

2CDS271337R0387 | SU201M-K7
