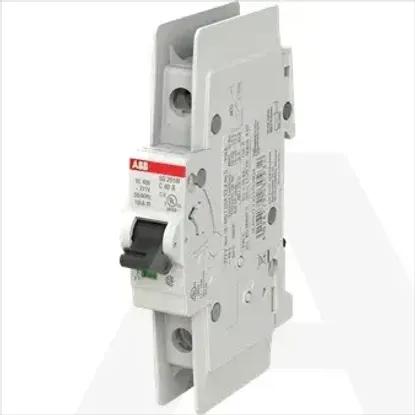

2CDS271337R0404 | SU201M-C40
Code: 2002375
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated current40A
Rated insulation voltage Ui440V
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated voltage277V
Current limiting class3
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Number of poles (total)1
Pollution degree3
Width in number of modular spacings1
Degree of protection (IP)IP20
Number of protected poles1
Connectable conductor cross section multi-wired0 - 25mm²
Built-in depth69mm
Release characteristicC
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0 - 35mm²
Over voltage category3
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
