Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Number of protected poles1
Rated current8A
Pollution degree3
Built-in depth69mm
Width in number of modular spacings1
Frequency50 - 60Hz
Over voltage category3
Release characteristicK
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
Rated voltage277V
Current limiting class3
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Rated insulation voltage Ui440V
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

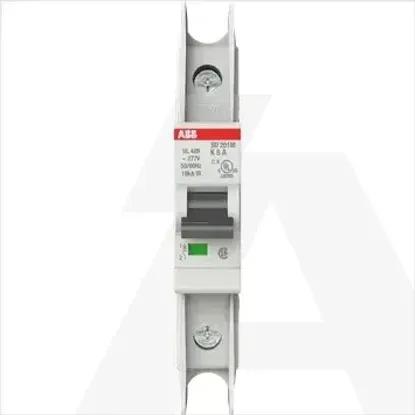

2CDS271337R0407 | SU201M-K8
