Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Rated insulation voltage Ui440V
Over voltage category3
Voltage typeAC/DC
Concurrently switching neutral conductorNo
Release characteristicK
Frequency50 - 60Hz
Degree of protection (IP)IP20
Pollution degree3
Rated voltage240V
Rated current40A
Number of protected poles1
Width in number of modular spacings1
Current limiting class3
Suitable for flush-mounted installationNo
Built-in depth69mm
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Ambient temperature during operating-25 - 55°C
Number of poles (total)1
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Connectable conductor cross section multi-wired0 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CDS271337R0557 | SU201M-K40

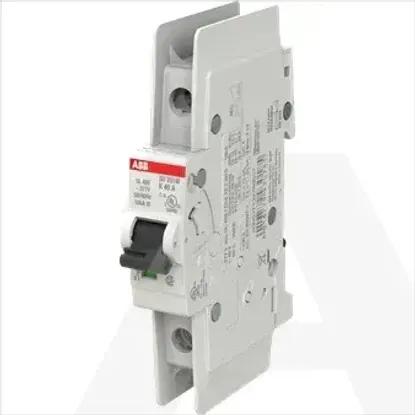

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated insulation voltage Ui

440V

Over voltage category

3

Voltage type

AC/DC

Concurrently switching neutral conductor

Release characteristic

K

Frequency

50 .. 60Hz

Degree of protection (IP)

IP20

Pollution degree

3

Rated voltage

240V

Rated current

40A

Number of protected poles

1

Width in number of modular spacings

1

Current limiting class

3

Suitable for flush-mounted installation

Built-in depth

69mm

Rated impulse withstand voltage Uimp

4kV

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Ambient temperature during operating

-25 .. 55°C

Number of poles (total)

1

Connectable conductor cross section solid-core

0 .. 35mm²

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

11.2kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Connectable conductor cross section multi-wired

0 .. 25mm²

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
