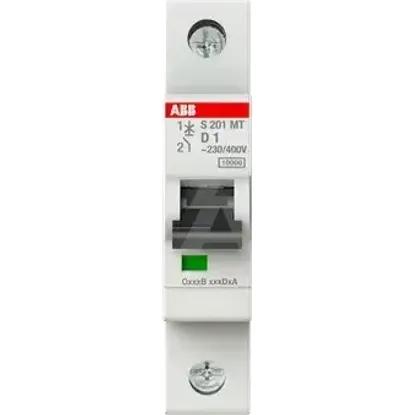

2CDS271445R0011 | S201MT-D1
Code: 2002408
ManufacturerABB
Catalog number2CDS271445R0011
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779124553
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage230V
Frequency50 - 60Hz
Built-in depth69mm
Voltage typeOther
Over voltage category3
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Width in number of modular spacings1
Additional equipment possibleYes
Power loss1.4W
Number of protected poles1
Current limiting class3
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current1A
Release characteristicD
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
