Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated voltage230V
Rated current2A
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Release characteristicC
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Current limiting class3
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of poles (total)1
Pollution degree3
Width in number of modular spacings1.0
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Flush-mounted installationNo
Power loss1.8W
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Over voltage category3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

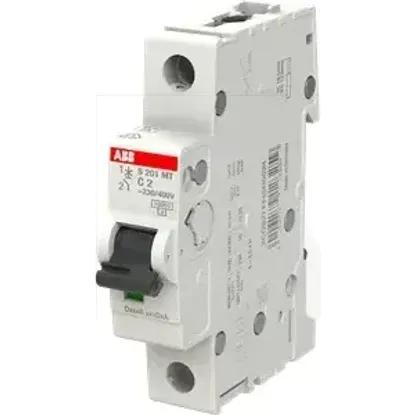

2CDS271445R0024 | S201MT-C2
