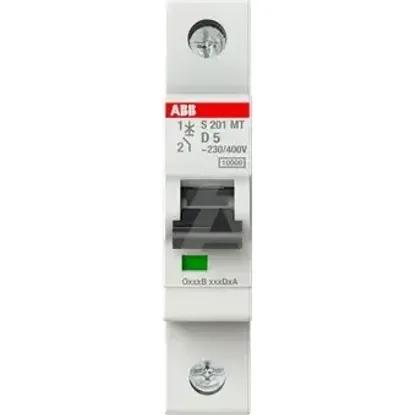

2CDS271445R0051 | S201MT-D5
Code: 2002420
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Frequency50 - 60Hz
Voltage typeOther
Rated insulation voltage Ui440V
Rated current5A
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Built-in depth69mm
Rated voltage230V
Power loss-W
Current limiting class3
Release characteristicD
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Width in number of modular spacings1.0
Flush-mounted installationNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Ambient temperature during operating-40 - 70°C
Over voltage category3
Concurrently switching neutral conductorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS271445R0051 | S201MT-D5
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Number of protected poles
1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Frequency
50 .. 60Hz
Voltage type
Other
Rated insulation voltage Ui
440V
Rated current
5A
Number of poles (total)
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Built-in depth
69mm
Rated voltage
230V
Power loss
-W
Current limiting class
3
Release characteristic
D
Explosion-proof
Connectable conductor cross section solid-core
0.75 .. 35mm²
Degree of protection (IP)
IP20
Width in number of modular spacings
1.0
Flush-mounted installation
Additional equipment possible
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Pollution degree
3
Ambient temperature during operating
-40 .. 70°C
Over voltage category
3
Concurrently switching neutral conductor
